You are here: products ·kapton filmDescription: Thermal insulation Kapton™ film for application use with Fuji Prescale Film in high-temperature environments.

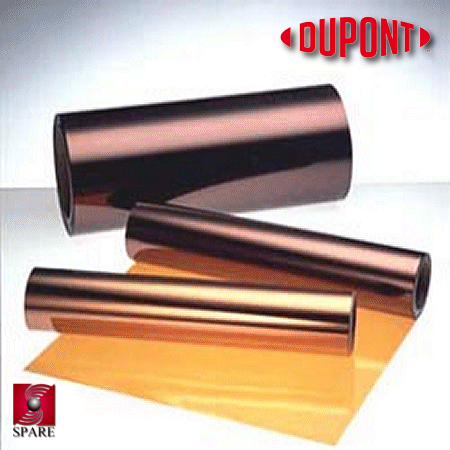

Kapton™ thermal insulation film for Fuji Prescale Film applications in high-temperature environments.
Kapton™ complementary film: Overview
As you may know, DuPont™ produces a wide range of high-quality plastic films, available for numerous application contexts. Tra questi, Among these, especially relevant for use alongside
Fuji Prescale Film,
are the polyimide films generally branded under the commercial name Kapton™. These films are also used in a broad spectrum of applications, from electrical to thermal insulation, across various
sectors including electrical, electronic, and automotive industries. Additionally, within the Kapton™ product family,
there are different types of films available, such as HN, FN, and HPP-ST, which are among the most commonly used.
In this section, we will provide more detailed information about the HN type, which is marketed by Spare sas for use
with Prescale Film.
Kapton™ complementary film: Key Features
wide operational temperature range: from -269 °C to 400 °C;
high dimensional stability under thermal variations;
easy to use.
Kapton™ complementary film: Usage Instructions
Simplified, the Kapton™ HN film serves as a flexible protective barrier that can be used to shield the Prescale Film
during its use in high-temperature environments, such as those encountered in hot sealing processes or more generally where it
is necessary to measure
contact pressures in the presence of heat sources that cannot be deactivated during the Prescale testing. Cut the Kapton™ film so
that its size and shape are slightly larger than the corresponding shape cut from the Prescale film roll. Then, place the Kapton™
film between the Prescale Film and the heat source(s). Considering that the maximum operational limit is 400°C, it is advisable
to minimize the testing time to prevent excessive heat transfer through the Kapton™ film, which could potentially damage the Fuji
Prescale Film during extended testing.
You are here: products · kapton film Description: Thermal insulation Kapton™ film for application use with Fuji Prescale Film in high-temperature environments.
Kapton™ thermal insulation film
Kapton™ thermal insulation film for Fuji Prescale Film applications in high-temperature environments.
Kapton™ complementary film: Overview
As you may know, DuPont™ produces a wide range of high-quality plastic films, available for numerous application contexts. Tra questi, Among these, especially relevant for use alongside Fuji Prescale Film,
are the polyimide films generally branded under the commercial name Kapton™. These films are also used in a broad spectrum of applications, from electrical to thermal insulation, across various
sectors including electrical, electronic, and automotive industries. Additionally, within the Kapton™ product family,
there are different types of films available, such as HN, FN, and HPP-ST, which are among the most commonly used.
In this section, we will provide more detailed information about the HN type, which is marketed by Spare sas for use
with Prescale Film.
Kapton™ complementary film: Key Features
Kapton™ complementary film: Usage Instructions
Simplified, the Kapton™ HN film serves as a flexible protective barrier that can be used to shield the Prescale Film during its use in high-temperature environments, such as those encountered in hot sealing processes or more generally where it is necessary to measure
contact pressures in the presence of heat sources that cannot be deactivated during the Prescale testing. Cut the Kapton™ film so
that its size and shape are slightly larger than the corresponding shape cut from the Prescale film roll. Then, place the Kapton™
film between the Prescale Film and the heat source(s). Considering that the maximum operational limit is 400°C, it is advisable
to minimize the testing time to prevent excessive heat transfer through the Kapton™ film, which could potentially damage the Fuji
Prescale Film during extended testing.
Kapton™ complementary film: Technical Specifications
(*) data typically measured at 23°C (73°F), with 50% RH (other characteristics as per DuPont documentation),
Kapton™ complementary film: Reference Documentation
